Press-line Frame Glass Plate Optical Soring Machine from China manufacturer
Brand : RKE
Product origin : CHINA
Delivery time : ３０days
Supply capacity : ６00 Set/Year
Press-line Frame Glass Plate Optical Soring Machine from China manufacturer
1. Product introduction
Optical Sorting Machine utilizes industrial image processing through the use of cameras mounted over production lines for inspection without operator intervention.
When it comes to inspection, there are many different variables that come into play to get accurate and precise measurements. Each of our product lines of inspection equipment has been designed around different handling and feeding concepts to allow us to provide a solution for inspection and quality for virtually any style of parts or products.
It would be nice to have one machine that would fit every application, but we all know that this is not a good concept. Design and engineering for a specific application while keeping standard options available keeps the cost of machinery low while allowing for the best performance for the type of products being inspected.
2. Capable of Detection:
Automobile parts | Auto Fastener nut |
Precision screw | insert nuts |
Micro part | Faster part |
Stamping part | Fuel pipe union |
Semiconductor element | Other special hardware parts,etc |
3. Inspection parameters:
Diameter, Hole diameter | Roundness |
Length | With mark |
Width | With coating |
Height, Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Different shape | Broken pin, Recess depth |
Crack | With thread |
Deformed, Broken | Fine or coarse thread |
Burrs, Chips | Thread numbers |
Across Corner | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
Heat treatment |
4. Products Parameter for Press-line Frame Glass Plate Optical Soring Machine :
| Model: | RK-1500 |
Head Diameter: | Ø1.0-Ø25mm |
Head Thickness: | Ø1.0-Ø15mm |
Height(mm): | 1mm-25mm (Can be placed on the glass plate evenly.) |
Sorting Accuracy: | ±0.02mm (Based on the reference products supplied by customers as screening criteria for identification.) |
Sorting Speed: | 300-1200pcs/min, According to individual case (objects and feeding system). |
Air Pressure(kg/cm): | 5kg/cm |
| Mainframe computer | Industrial pc |
| Digital camera | German CCD |
| Net weight(KGS) | 700 |
| Size | 1400×900×1800(LWH) |
Description for CCD Screening: | 1)CCD1 Level Vision 2)CCD2 Upside 45°Vision 3)CCD3 Downside 45°Vision 4)CCD4 Lateral Vision 5)CCD5 Upward Detection 6)CCD6 Downward Vision |
5.Press-line Frame Glass Plate Optical Soring Machine Features:
1. Highly-transparent glass plate.
2. Germany Industrial CCD Camera.
3. Fit for grease-free parts which can be placed on the glass plate securely.
4. Can be added 2-6 cameras.
5. Speed: up to 1200 pcs/min, depend on individual case(product size and feeding system).
6. Replacement parts fast, simple operation.
7. User-friendly software.
6. CCD Camera Advantages of Glass Plate Optical Soring Machine
The vision machine system is based on high-precision Gemany Industrial CCD Camera, and is used for precise dimensional measurements.

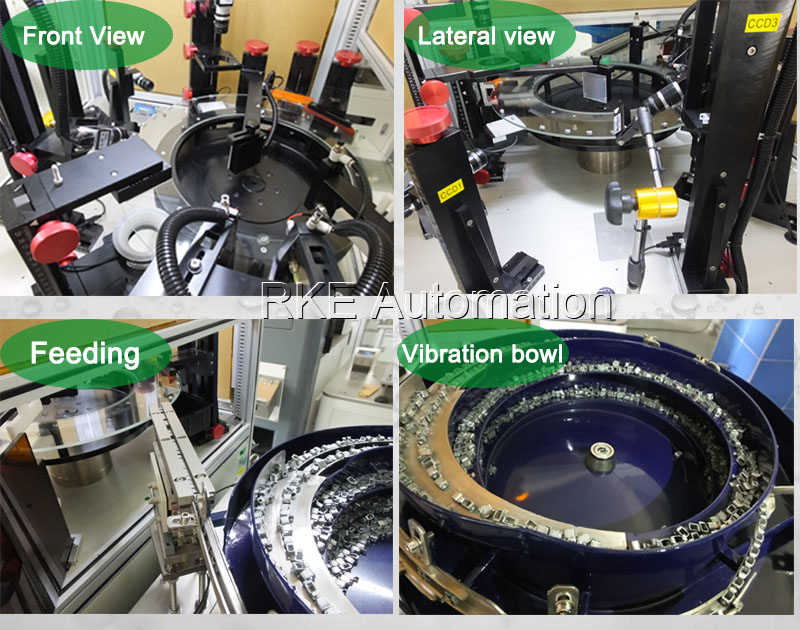

7. Details for Press-line Frame Glass Plate Optical Soring Machine:
8. Flow Chart:
9. Packaging Details:
Auto Fatener nut optical sorting machine
Our products use professional wooden cases.
Package size will depend on each model size.Or according to the orders.
Delivery Time:
Delivery by shipping, about 30 working days after confirm deposit.
10. Company Introduction:
11. Certification and Patent:
Multiple
Copyright of computer software
RKE Automation
Senior Engineer-Independent research and development
12. After-service:
1, One year free warranty;
2, Enjoy lifelong maintenance;
3, Professional service team, to provide 365 days and 24 hours of technical support;
4, On-line remote service.
